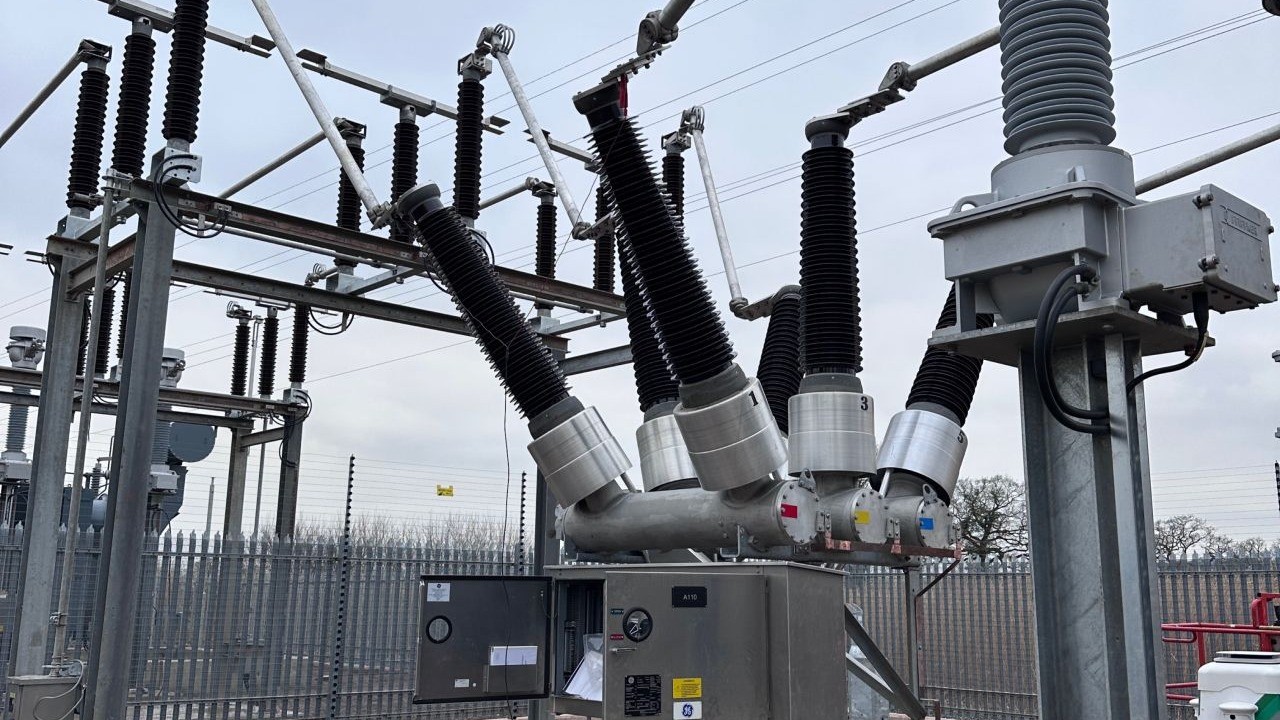

High Voltage Circuit Breakers
High Voltage Circuit Breakers Supply and Sourcing for Transmission Expansion, Substation Upgrades, Data Center Interconnections, and Urgent Replacement Programs
Executive Overview
High voltage circuit breakers are critical switching devices used to interrupt fault current and isolate energized equipment in transmission and generation systems. A high voltage circuit breaker protects transformers, transmission lines, bus sections, and generation assets from short circuits, overloads, and system disturbances.
They are installed in:
• Transmission substations
• Generation switchyards
• Renewable interconnection points
• Industrial high voltage yards
• Large data center substations
• Utility distribution substations at higher voltage classes
Operationally, their function is simple but critical. Detect a fault. Interrupt current. Contain arc energy. Preserve system stability.
From a procurement and engineering standpoint, circuit breakers are specification-driven assets. Voltage class, interrupting rating, BIL, short circuit current, control voltage, insulation medium, seismic rating, and environmental conditions must align exactly with system requirements.
Supply timing matters because high voltage circuit breaker lead times directly affect energization schedules. In current grid expansion cycles, breaker delivery can delay transformer energization, line commissioning, and interconnection approvals. For urgent HV breaker replacement after a failure event, availability often becomes the gating factor for restoring load or generation capacity.
This page is written for procurement teams, engineers, EPC contractors, asset managers, and operations leaders responsible for specification review, sourcing decisions, installation planning, and lifecycle management.
Services:
Industry Context and Real World Constraints
High voltage circuit breakers fall into the category of long lead electrical equipment. Lead times vary by voltage class, interrupting rating, and manufacturer backlog. In many cases, delivery windows extend beyond standard project timelines, especially when custom configurations or high seismic qualifications are required.
Several factors are driving pressure on breaker supply:
• Transmission expansion programs
• Renewable interconnections requiring new bays
• Data center substation builds
• Aging infrastructure replacement
• Utility grid modernization initiatives
Transformer lead time often receives more attention, but switchgear supply shortage conditions also affect high voltage breakers, particularly for 230 kV and above. A breaker is frequently the last critical component required before energization.
Commissioning pressures compound these realities. Once transformers, structures, and control systems are in place, the breaker becomes the final link. Delays in breaker supply can stall entire substation projects.
Secondary market dynamics are increasingly relevant. Redeployed or surplus high voltage circuit breakers can mitigate urgent schedules, but only if documentation, testing history, and configuration alignment meet engineering standards.
For emergency HV breaker replacement, time sensitivity changes procurement strategy. Factory new may not be feasible. Evaluation of available stock, refurbished units, or expedited manufacturing becomes necessary.
Technical Breakdown by Subcategory
High Voltage Circuit Breaker
A high voltage circuit breaker is designed to interrupt high magnitude fault current at transmission and sub-transmission voltage levels. Typical voltage classes range from 69 kV through 500 kV and above.
Engineering considerations include:
• Rated maximum voltage
• Continuous current rating
• Short circuit interrupting rating
• Insulation level and BIL
• Operating mechanism type
• Control voltage
• Environmental exposure
Specification alignment must match system fault studies and protection coordination. Underrated interrupting capacity creates catastrophic failure risk. Overspecification increases cost and may complicate integration.
Procurement risks include mismatched control schemes, incompatible trip coils, or incorrect mounting configurations.
Operational failure risks include contact wear, mechanism fatigue, gas leakage, and insulation degradation.
Replacement challenges include foundation compatibility, structure alignment, and control wiring integration with legacy protection systems.
Dead Tank Circuit Breaker
A dead tank circuit breaker houses the interrupting chamber inside a grounded metal enclosure. Bushings connect line and load conductors to the internal interrupting chamber.
Dead tank designs are common in North American substations.
Engineering considerations:
• Grounded enclosure improves safety
• Lower center of gravity
• Suitable for high seismic zones
• Integrated current transformers possible
Specification alignment issues include CT ratio selection and bushing ratings.
Procurement risks include incorrect CT configuration and mismatch between protection relays and internal CT outputs.
Operational risks involve SF6 containment integrity and mechanism reliability.
Replacement challenges include foundation bolt pattern alignment and integration into existing bus geometry.
Live Tank Breaker
A live tank breaker mounts the interrupting chamber at line potential on insulated columns. The tank itself is energized.
Live tank breakers are widely used internationally and at higher voltage classes.
Engineering considerations:
• Lighter weight
• Reduced footprint
• Simplified structure requirements
Specification risks include incorrect insulation coordination and insufficient creepage distance for environmental conditions.
Procurement challenges include accessory compatibility and control cabinet configuration.
Operational failure risks include porcelain insulator damage, contamination flashover, and mechanism wear.
Replacement complexity increases when retrofitting into substations designed for different breaker geometries.
Generator Circuit Breaker
A generator circuit breaker is installed between the generator and step-up transformer. It must handle high asymmetrical fault current and frequent switching operations.
Engineering considerations:
• High continuous current rating
• High mechanical endurance
• Special protection coordination with generator relays
Specification errors can result in inadequate interrupting capability during generator-fed faults.
Procurement risks include misalignment with generator excitation and protection systems.
Operational risks include contact erosion due to frequent operations.
Replacement challenges often require outage coordination with generation schedules.
HV Breaker Replacement
HV breaker replacement is often driven by aging infrastructure, failure events, or environmental compliance concerns.
Engineering considerations include:
• Dimensional fit within existing bay
• Control wiring compatibility
• Protection relay coordination
• Seismic and wind loading
Procurement urgency often elevates this into emergency generator procurement type conditions, where restoration time affects revenue or grid reliability.
Risks include incomplete documentation on legacy systems and unknown foundation conditions.
Redeployment from secondary sources may mitigate long equipment lead times power industry constraints, but only when technical equivalency is validated.
SF6 Circuit Breaker
SF6 circuit breakers use sulfur hexafluoride gas for arc quenching and insulation.
Engineering considerations:
• High dielectric strength
• Compact design
• Effective arc interruption
Specification alignment must include gas pressure monitoring, density alarms, and environmental compliance.
Procurement risks include regulatory restrictions in certain regions due to greenhouse gas concerns.
Operational risks involve gas leakage, moisture ingress, and pressure loss leading to lockout.
Replacement planning increasingly considers alternatives due to environmental regulations.
Vacuum Circuit Breaker
Vacuum circuit breakers use vacuum interrupters to extinguish arcs. They are common at medium voltage and increasingly applied at higher voltage classes.
Engineering considerations:
• Minimal arc byproducts
• Reduced maintenance
• High mechanical endurance
Specification concerns include voltage class limitations and transient recovery voltage performance.
Procurement risks include integration challenges at higher transmission voltages.
Operational risks are generally lower maintenance related but require monitoring of mechanism wear.
Replacement decisions often weigh lifecycle cost and maintenance burden versus traditional SF6 designs.
System Integration and Dependencies
High voltage circuit breakers do not operate in isolation.
They interact directly with:
• Protection relays
• SCADA and control systems
• Current transformers and voltage transformers
• Bus structures and line terminations
• Transformer bushings
• Grounding systems
Improper coordination with protection settings can result in nuisance tripping or failure to clear faults.
Cooling systems are generally not required for the breaker itself, but ambient temperature affects insulation and gas pressure.
Environmental conditions such as altitude, pollution level, coastal exposure, and seismic zone classification must be reflected in specification.
Compliance requirements include IEEE, IEC, and utility-specific standards.
Lifecycle Perspective
Specification begins with fault study data and system voltage class.
Sourcing must confirm:
• Voltage rating
• Interrupting rating
• Continuous current
• Insulation coordination
• Environmental classification
Procurement requires review of:
• Factory test reports
• Type test certificates
• Routine test documentation
• Control schematics
• Nameplate data
Lead times vary significantly by voltage class and manufacturer backlog. High voltage circuit breaker delivery can influence overall equipment lead times power industry schedules.
Factory testing includes mechanical operation tests, dielectric tests, and timing tests.
Delivery logistics require heavy transport planning, rigging coordination, and site access verification.
Installation includes foundation alignment, bus connection, control wiring termination, gas filling if applicable, and grounding.
Commissioning requires timing verification, protection coordination testing, and integration into SCADA systems.
Maintenance planning includes contact wear inspection, mechanism lubrication, gas density monitoring, and insulation inspection.
Replacement planning must consider evolving standards, environmental regulations, and compatibility with legacy infrastructure.
Secondary market redeployment is viable when equipment history, maintenance records, and test documentation are complete and validated.
Procurement Strategy and Risk Mitigation
Effective procurement strategy for high voltage circuit breakers includes:
• Early lead time forecasting
• Validation of interrupting rating against updated fault studies
• Control scheme interoperability review
• Environmental and seismic compliance confirmation
• Review of factory testing scope
Risk mitigation measures:
• Alternate approved manufacturers
• Standardized voltage class configurations
• Prequalified secondary market sources
• Documentation verification prior to shipment
• Onsite inspection before acceptance
For urgent HV breaker replacement, parallel sourcing paths may be required. One path focused on new manufacturing. Another focused on redeployed or refurbished units with validated test records.
Spec validation must precede purchase order issuance. Incorrect interrupting rating or control voltage can create commissioning delays or unsafe conditions.
Operational Risks and Failure Modes
Common issues observed in the field:
• Incorrect interrupting rating relative to updated system fault levels
• Incompatible trip coil voltage
• Misaligned CT ratios affecting protection performance
• Gas leakage in SF6 circuit breaker designs
• Mechanical mechanism fatigue
• Inadequate environmental rating for coastal or high altitude sites
Installation errors can include improper torque on bus connections, incomplete grounding, or incorrect gas pressure settings.
Aging infrastructure risks increase as insulation systems degrade and spare parts availability declines.
Commissioning delays often result from incomplete documentation or control integration mismatches.
Who This Page Is For
This page supports:
Utilities responsible for transmission and substation reliability
Transmission operators managing grid stability
Independent power producers coordinating interconnection assets
Data center developers building high capacity substations
Industrial facilities operating high voltage yards
EPC contractors executing substation builds
Procurement teams managing long lead electrical equipment
Asset managers planning lifecycle replacement programs
Professional Call to Action
High voltage circuit breakers are specification critical assets. Delivery timing, interrupting capacity, and system integration directly affect energization schedules and operational risk.
Jaylan Solutions
www.jaylansolutions.com
Supports transmission and generation stakeholders as:
• Supply partner
• Specification aligned sourcing advisor
• Secondary market strategist
• Long lead mitigation resource
Engage early in the planning phase to validate specification, confirm availability pathways, and reduce schedule risk before breaker procurement becomes the constraint.
